Automatically Lubricates

Technology & Function

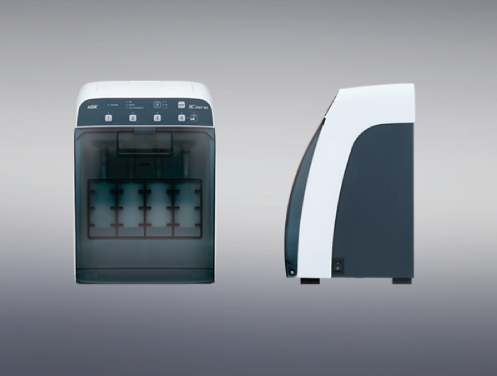

  • Stylish & Compact
    Stylish & Compact

    In the pursuing ultimate ease of use, NSK has given iCare the power to perform automatic maintenance for up to four handpieces at once.
    iCare is also designed to be simple to set up and space efficient, you can install it virtually anywhere.

  • Easy to Clean
    Easy to Clean

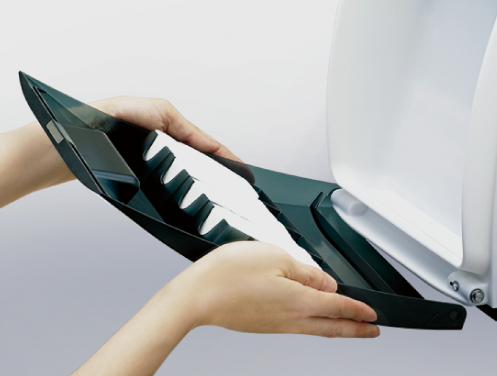

    iCare’s front door can be completely removed to allow fast, easy cleaning of the system.

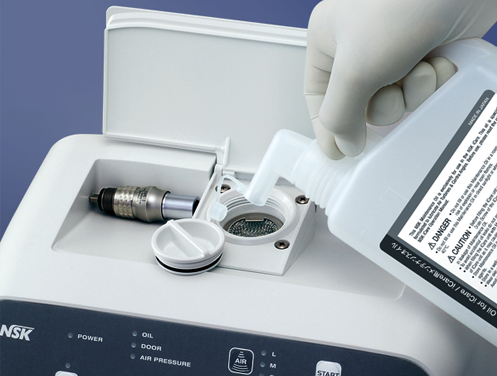

  • Big Solution Tank
    Big Solution Tank

    iCare’s big solution tank has a capacity of 1.2 liters, allowing you to pour in a full one-liter bottle of maintenance solution at once, reducing the necessity for frequent refilling.
    The enclosed nozzle enables clean and easy refills.

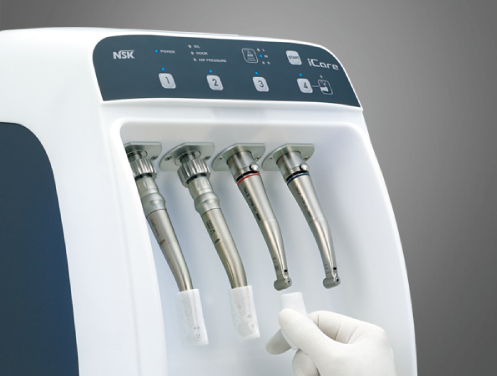

  • Handpiece Head Filter
    Handpiece Head Filter

    Handpiece Head Filter is made to absorb any spray mist generated, which prevents mist leaks.

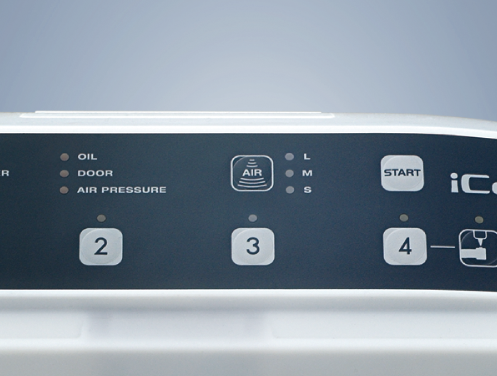

  • Purging Select Mode
    Purging Select Mode

    After lubrication, you can select from appropriate modes offering different purge lengths.

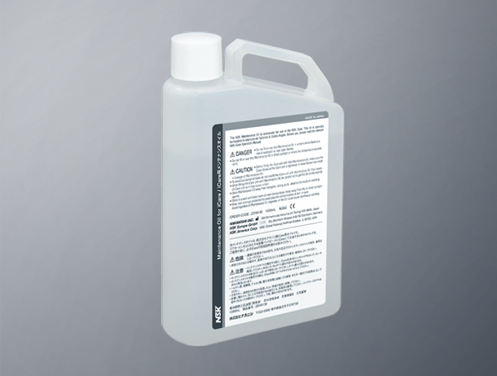

  • iCare Maintenance Oil
    iCare Maintenance Oil

    The specially formulated maintenance oil provides for the highest levels of lubricating of handpieces.

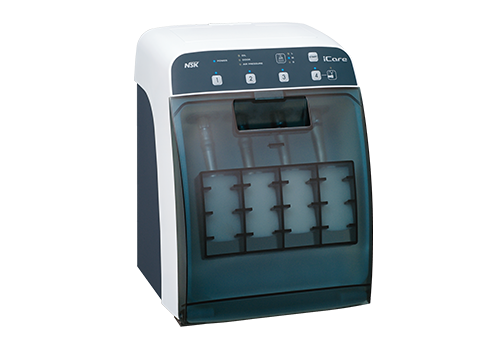

iCare

iCare

Specifications

  • Power Supply
  • AC 100-240 V 50/60 Hz
  • Air Pressure
  • 0.5-0.6 MPa (5.0-6.0 kgf/cm2)
  • Weight
  • 6.5 kg (C2 Type / C3 Type)
  • Dimension
  • W 280 x D 240 x H 350 mm
  • Solution Tank Capacity
  • 1.2 L

* Connects only to Midwest 4-hole type
* Air piping is necessary (5.0-6.0 kgf/cm2)

Contents

  • iCare Unit
  • Power Cord
  • Chuck Lubrication Nozzle
  • Maintenance Oil for iCare (1 Litre)
  • Mist Filter Set
  • Oil Absorber Sheet
  • Air Tube

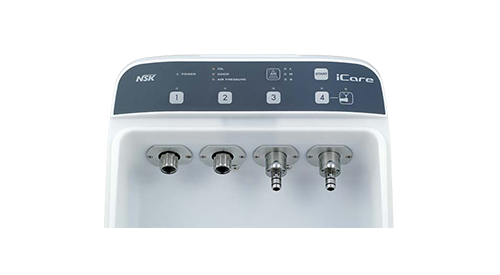

Dual Standard Ports + Dual Rotation Ports

  • iCare
    • Model:iCare C2 Type (120 V)
    • Order Code:Y1002796
    • Model:iCare C2 Type (230 V)
    • Order Code:Y1002787

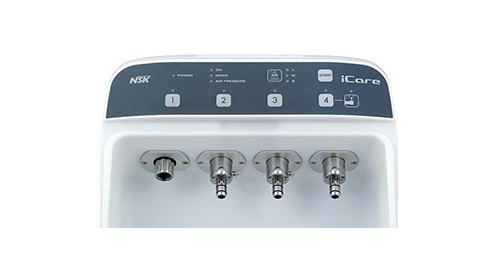

Single Standard Port + Triple Rotation Ports

  • iCare
    • Model:iCare C3 Type (120 V)
    • Order Code::Y1002797
    • Model:iCare C3 Type (230 V)
    • Order Code:Y1002788

iCare Adaptors

MODEL ORDER CODE
PTL Adaptor Z257010 For NSK High Speed Handpieces for PTL-CL-LED Coupling
B2 / M4 Adaptor T904 For Borden 2 hole High Speed Handpieces
KV Adaptor Z257020 For KaVo® High Speed Handpieces for MULTiflex® LUX Coupling
SR Adaptor Z257023 For Sirona® High Speed Handpieces for Quick Coupling
WH Adaptor Z257021 For W&H® High Speed Handpieces for Roto Quick Coupling
BA Adaptor Z280022 For Bien-Air® High Speed Handpieces for Unifix® Coupling
F-Type Adaptor Z280042 For ENDO-MATE TC2, DT, DT2 and TASKAL Wizard Heads

Check with the dealer for the adaptors to mount other manufactures' handpieces.
